SOLUTIONS

Industry-Specific VFD Control Systems

Purpose-built drive solutions for water, HVAC, logistics, mining, petrochemical and more
8 Industry Sectors · 20–60% Energy Savings
ABB · Schneider · Siemens · INOVANCE · CHINT · Delixi · Weinview · MCGS

Industry Sectors

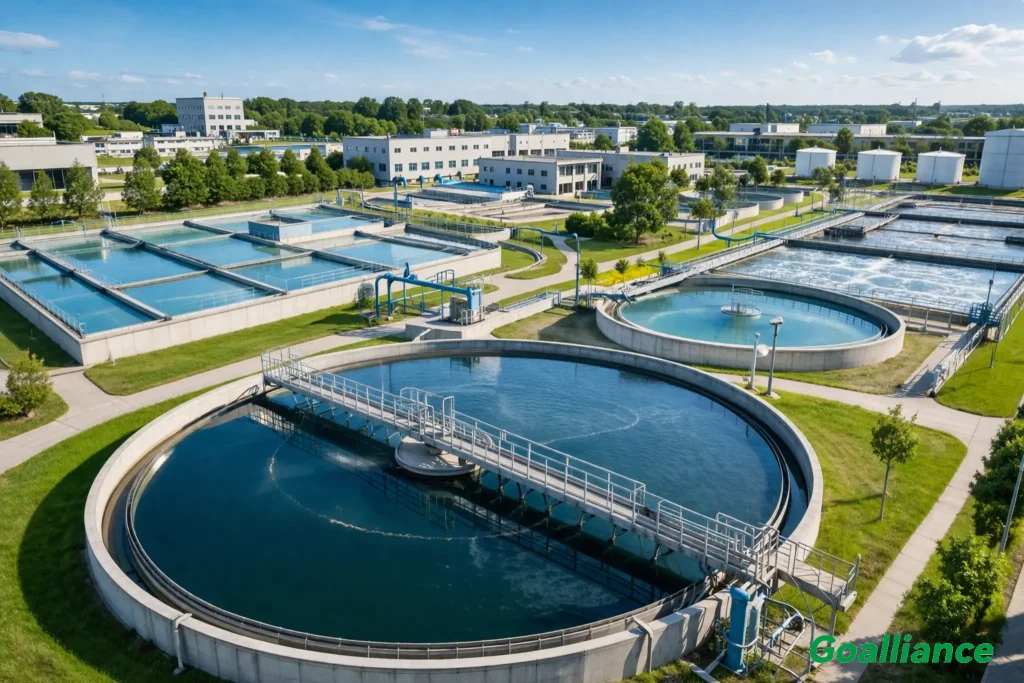

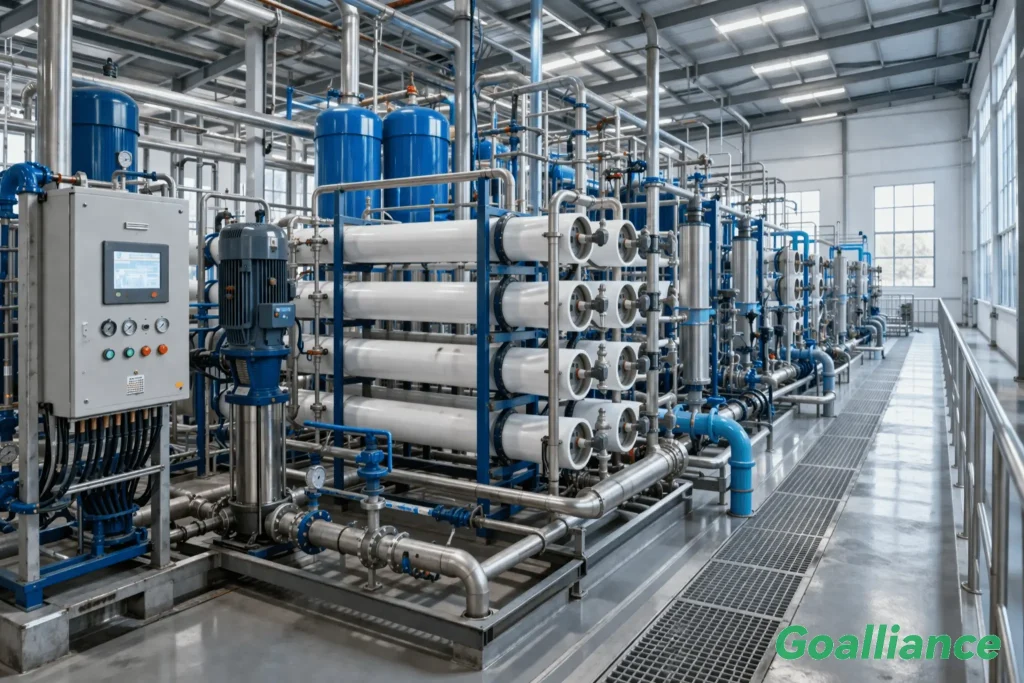

1. Water Treatment

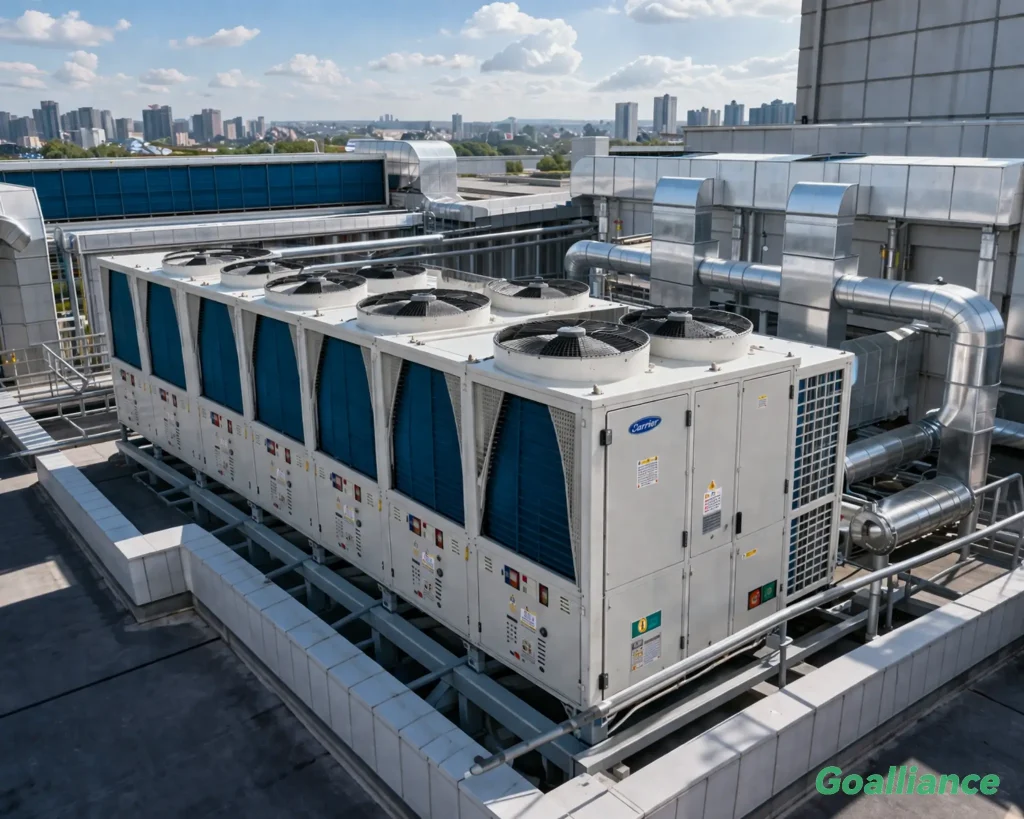

2. HVAC

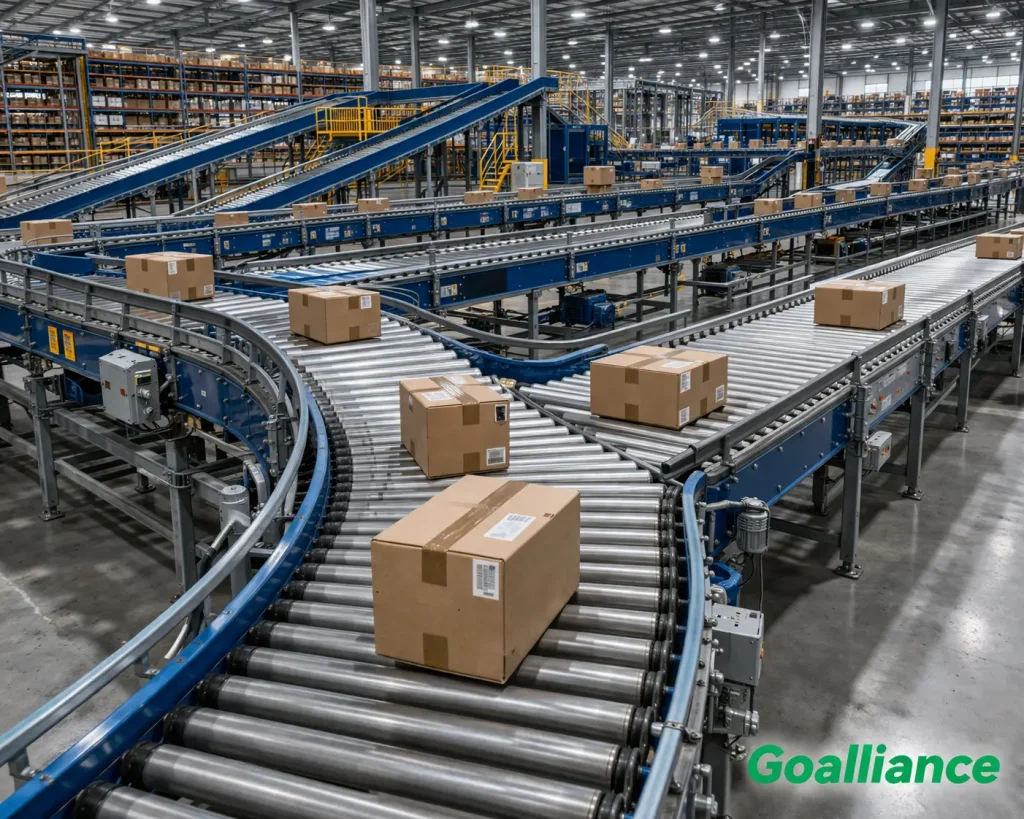

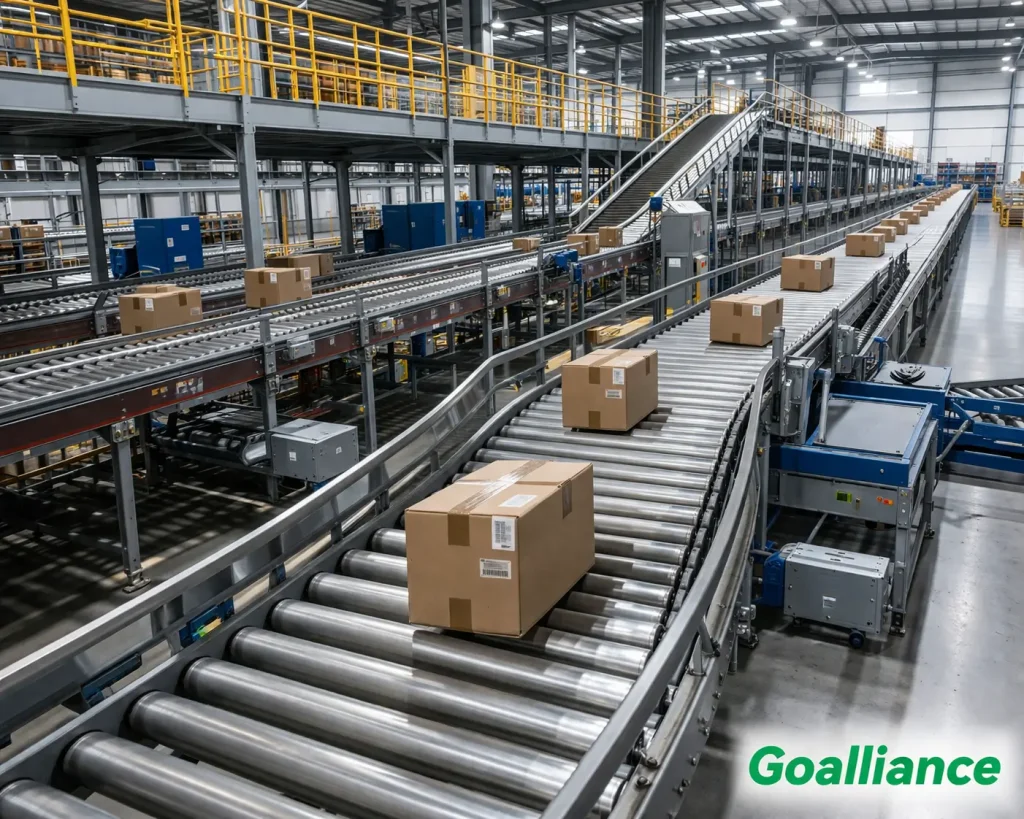

3. Logistics & Handling

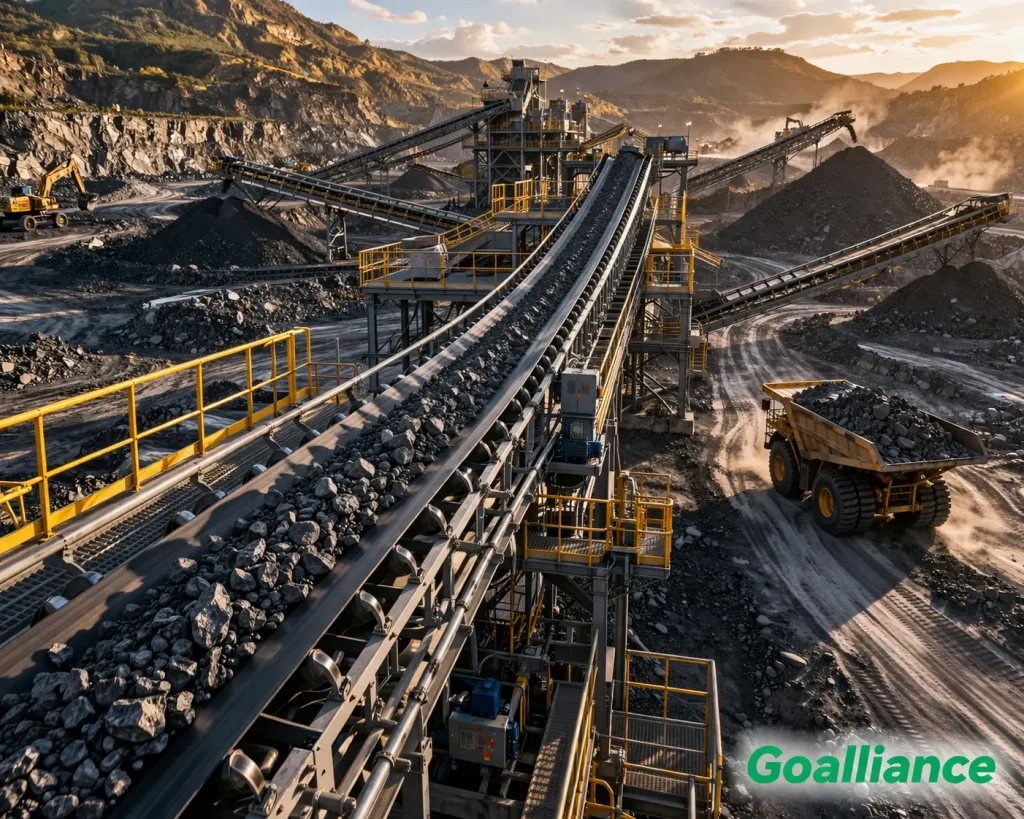

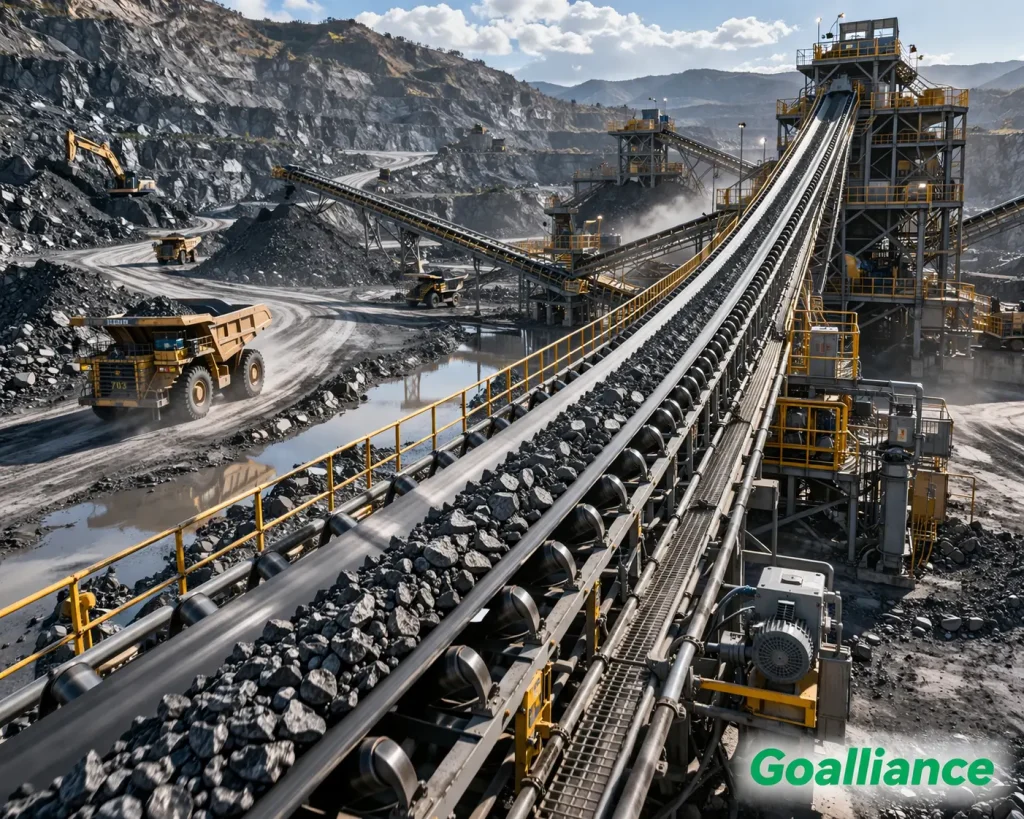

4. Mining Equipment

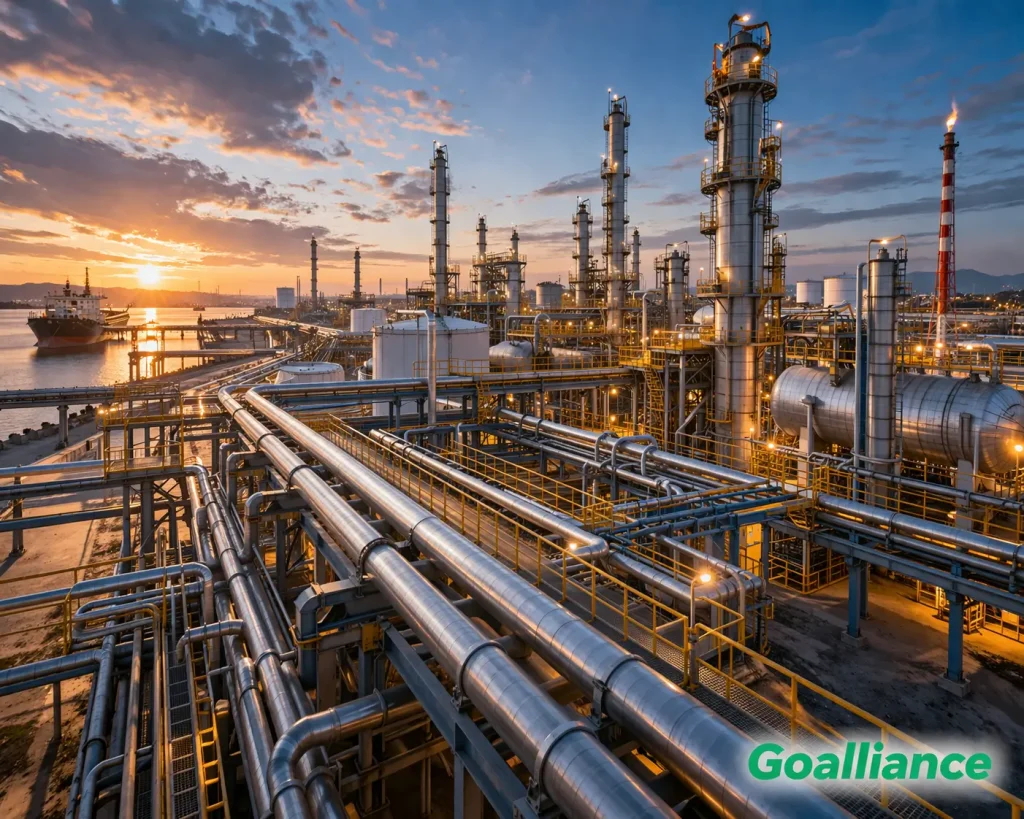

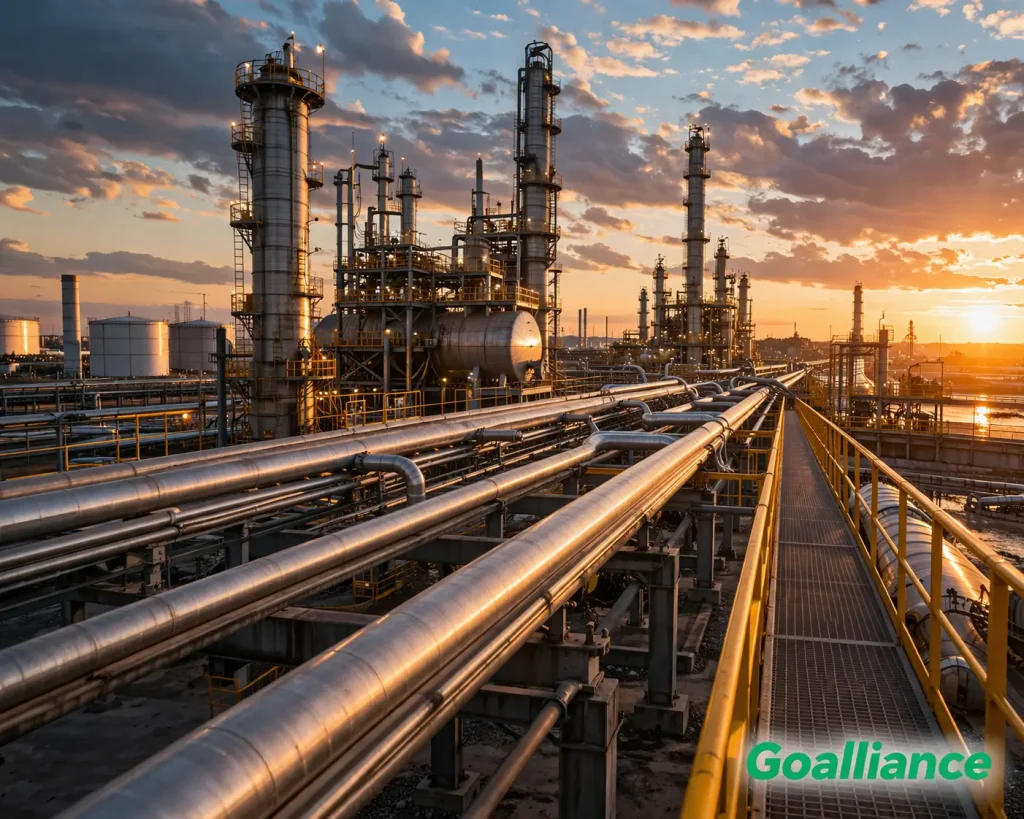

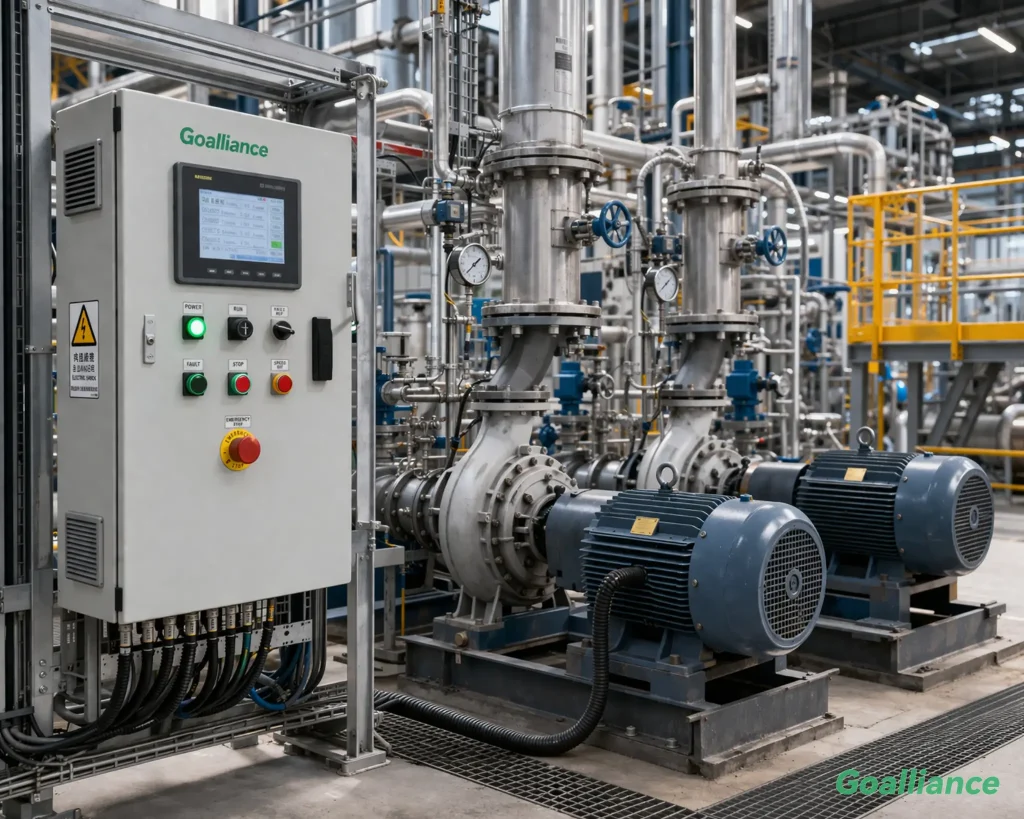

5. Oil & Petrochemical

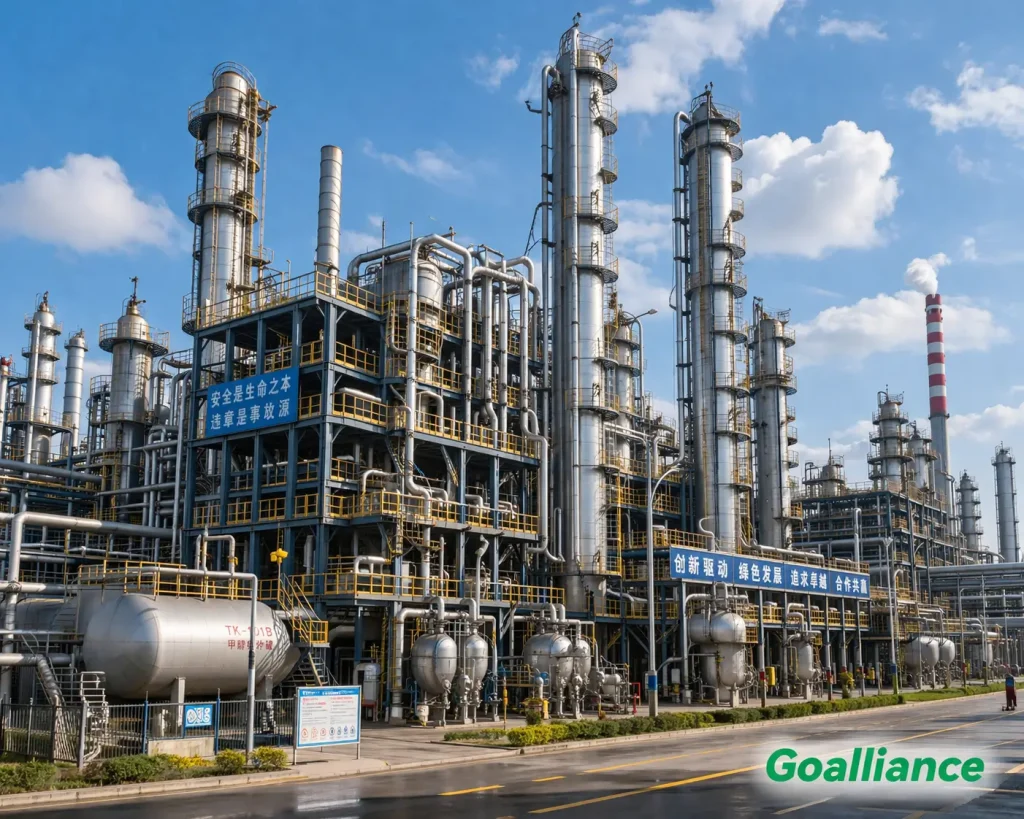

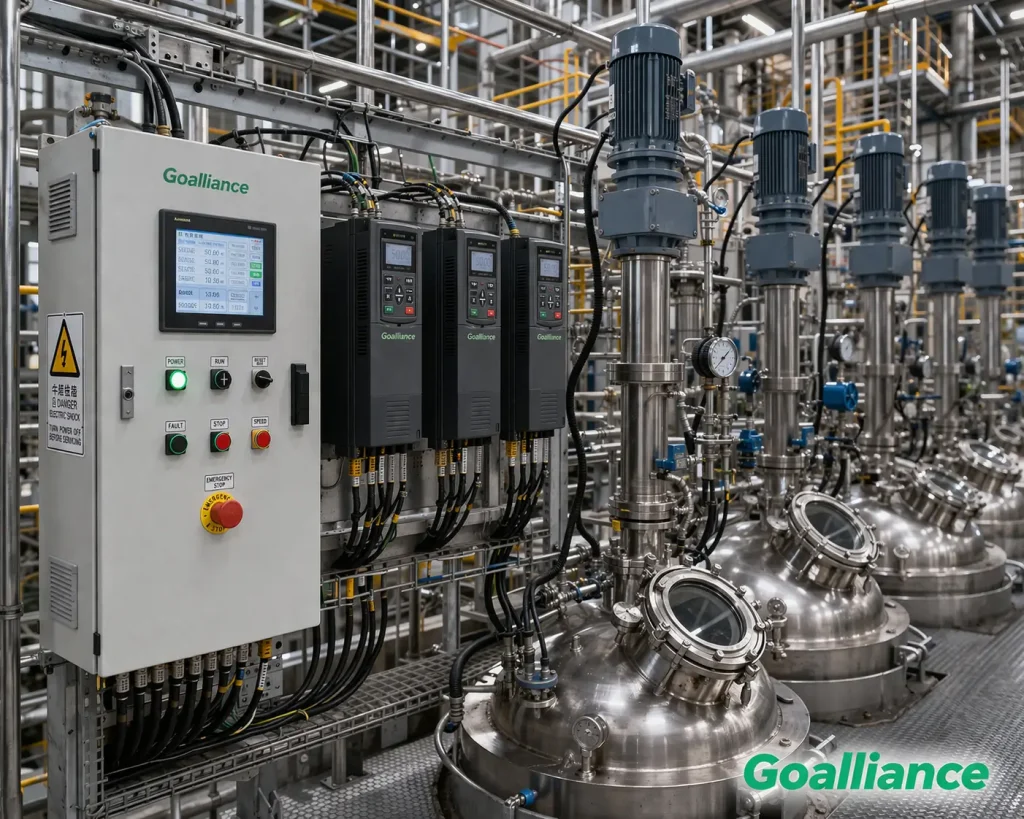

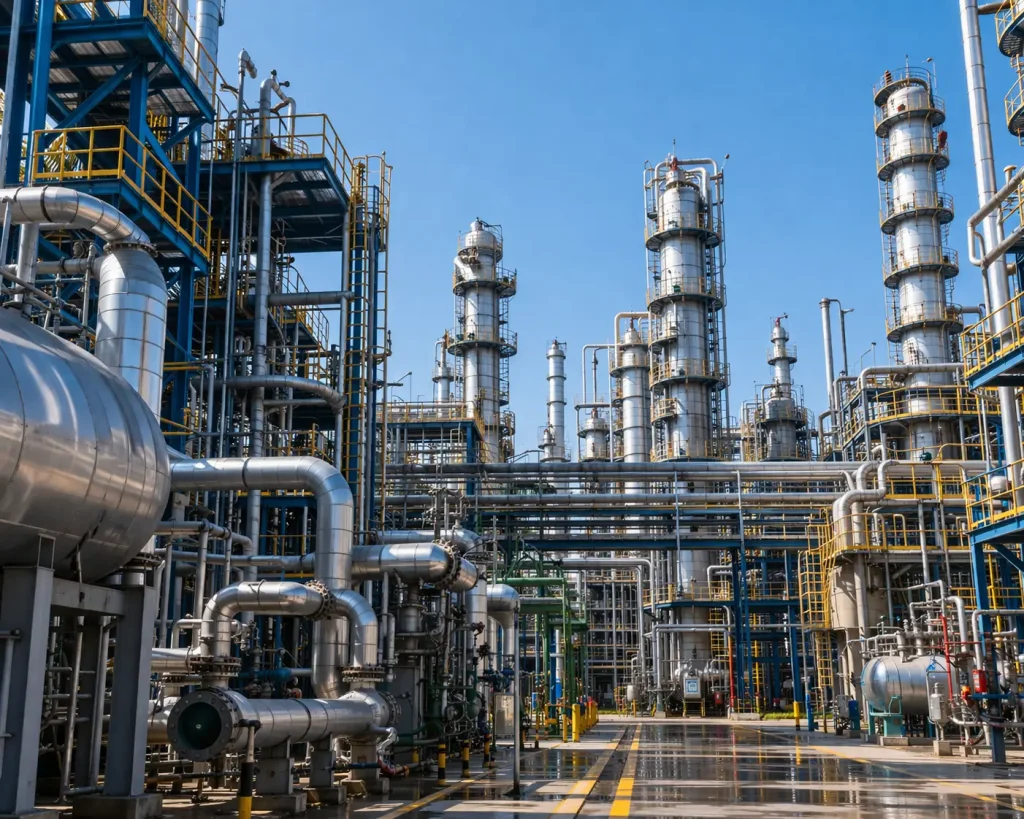

6. Chemical Industry

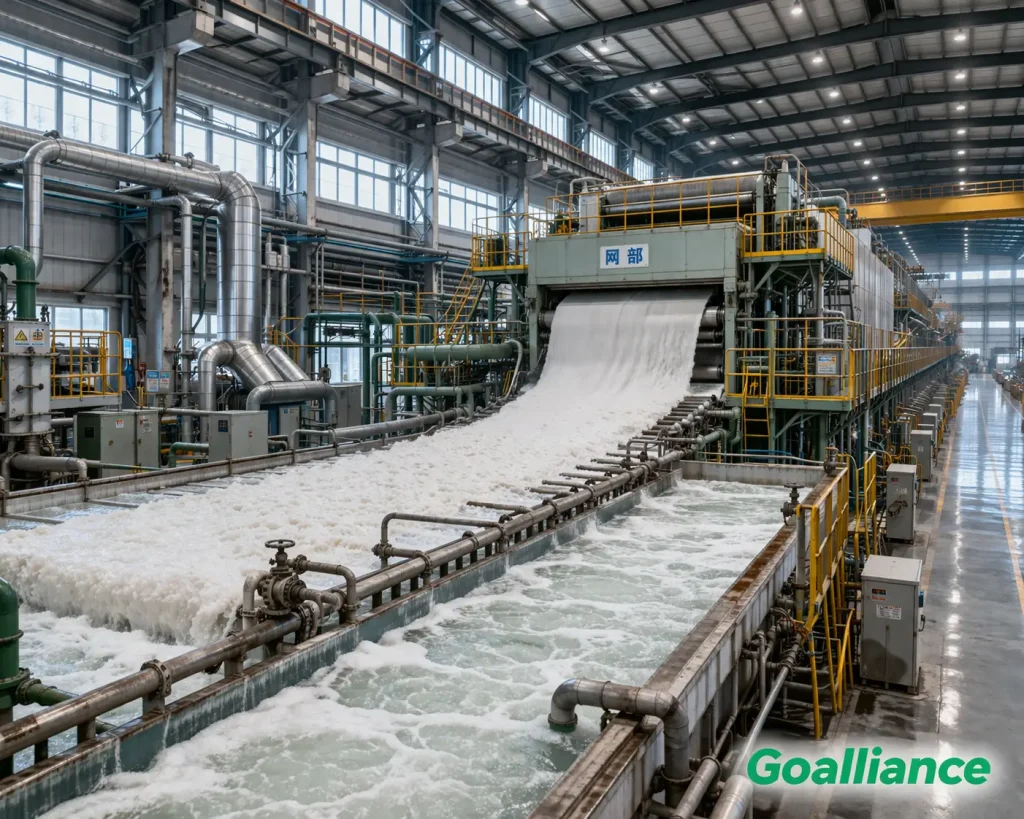

7. Papermaking

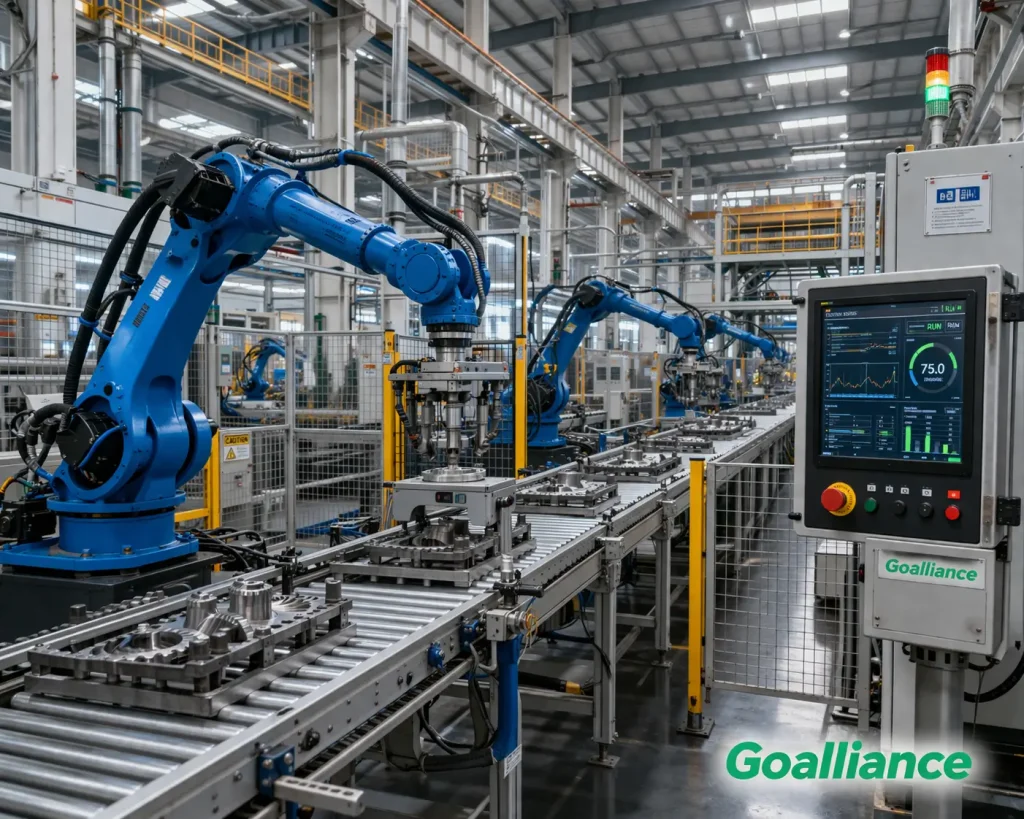

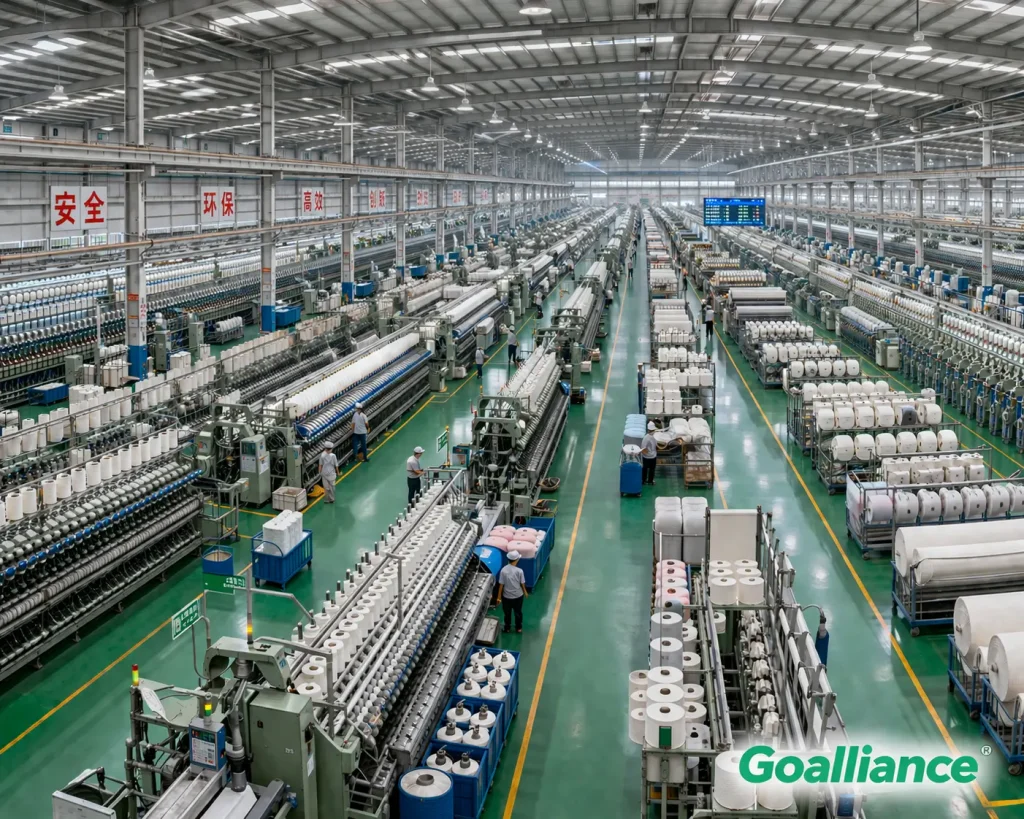

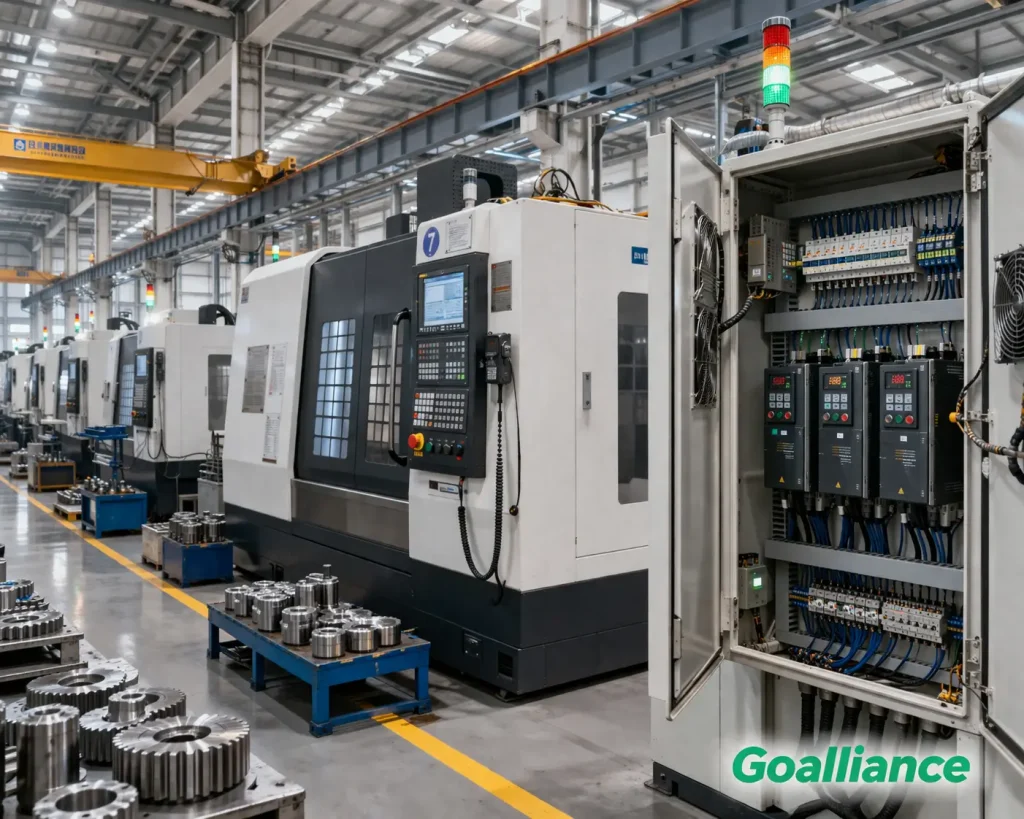

8. General Manufacturing

Everything You Need to Know Before Choosing a VFD Solution

From ROI calculations and brand selection to SCADA integration and hazardous-area enclosures — find clear, technically grounded answers to the questions that matter most at every stage of your project.

It depends on the application, but the numbers are substantial. Pump and fan systems — which follow the Affinity Laws — see energy savings of 20–50% in water treatment and 30–60% in HVAC, simply because power consumption drops with the cube of speed reduction. Running a fan at 80% of full speed uses only about half the energy. Compressors and machine tools in general manufacturing typically yield 20–40% savings. For most installations, the payback period is 12–24 months, after which the savings continue for the 10–15 year life of the system.

The total cost of ownership improvement goes well beyond the electricity bill. Extended equipment life — soft-start eliminates the mechanical shock of across-the-line starting, reducing bearing and seal wear on pumps, fans, and motors. Lower maintenance spend — reduced thermal cycling and mechanical stress mean fewer unplanned breakdowns. Reduced pipe surge and water hammer — particularly valuable in water treatment and petrochemical pipelines. Fewer belt and coupling replacements on conveyor and material handling systems. When you combine energy savings with these maintenance and downtime reductions, the true ROI of a VFD system is consistently higher than the energy savings figure alone.

Each industry has genuinely different requirements, and we engineer for those differences rather than selling a one-size-fits-all panel. Water treatment demands PID closed-loop pressure control and SCADA integration for unmanned pump stations. Papermaking requires multi-drive synchronization to ±0.01% speed accuracy or better to prevent web breaks. Mining needs high-torque ramp-up and regenerative braking for hoist and downhill conveyor applications. Oil and gas requires Ex-rated explosion-proof enclosures. Tell us your industry and application, and we will specify a system built around your actual operating conditions — not a generic catalogue product.

We work with ABB, Schneider Electric, Siemens, Inovance, CHINT, Delixi, Weinview, and MCGS — a deliberate mix of globally certified Tier 1 brands and cost-competitive alternatives. This matters because it gives you real choice: mission-critical applications in oil and gas or mining may warrant ABB or Siemens for their global service network and long spare parts availability. Cost-sensitive general manufacturing projects may be better served by Inovance or CHINT with equivalent performance at lower cost. We will recommend the brand that best matches your reliability requirements, budget, and local service support needs — not the one with the highest margin for us.

Yes — this is standard practice in our system designs, not an afterthought. Depending on your industry, we configure panels for Modbus RTU/TCP, PROFIBUS, PROFINET, EtherNet/IP, BACnet, CANopen, and Fieldbus protocols, covering virtually every major automation platform. Water and municipal systems get SCADA integration for remote and unmanned operation. HVAC systems connect to BMS via BACnet or Modbus. Petrochemical and chemical plants integrate with DCS. Paper machine drives use Profibus or Profinet for precision sectional synchronization. If your facility has a specific integration requirement, share the details and we will confirm compatibility before the project begins.

Enclosure selection is driven by where the panel will operate. Our standard range covers IP54 and IP65 for water treatment and outdoor installations. For mining and chemical environments we offer dust-proof and corrosion-resistant options including fibreglass and stainless steel enclosures. Oil, gas, and petrochemical applications can be specified with Ex-rated explosion-proof enclosures where hazardous area classifications apply. Offshore and marine installations can be configured with marine-grade corrosion protection. We will specify the appropriate enclosure rating for your environment as part of the engineering review.

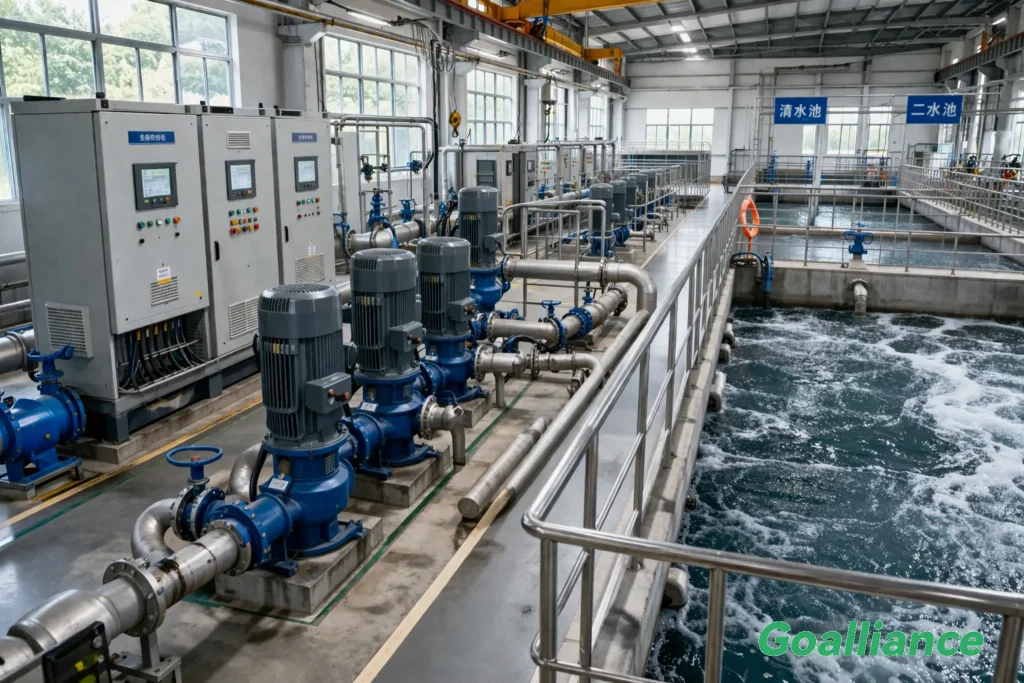

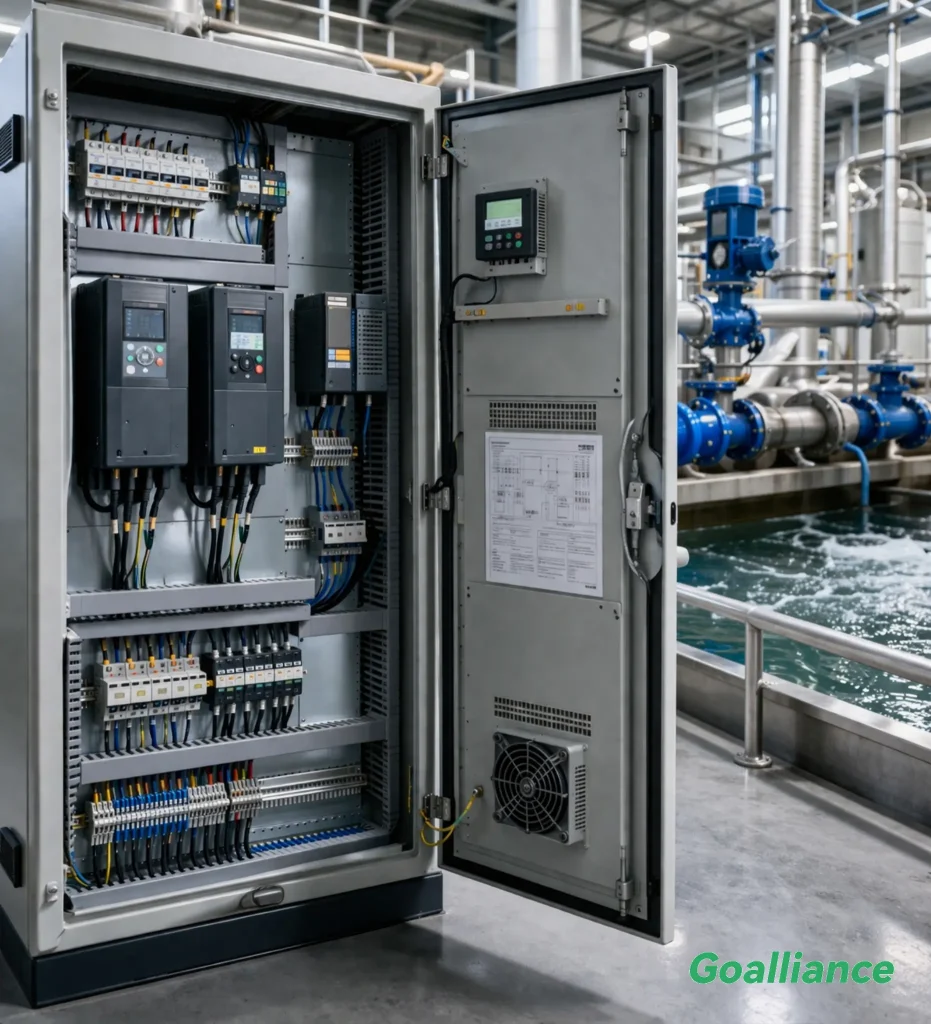

Yes — this is one of the most common and high-value applications we deliver. Our water supply VFD systems use PID closed-loop pressure control with pressure transducer feedback to maintain a constant target pressure setpoint regardless of demand fluctuations. The system automatically adjusts pump speed in real time — speeding up during peak demand, slowing down during low-demand periods — eliminating both pressure surges and under-pressure events. This is combined with remote monitoring and SCADA integration for unmanned pump station operation, reducing the need for on-site operator attendance.

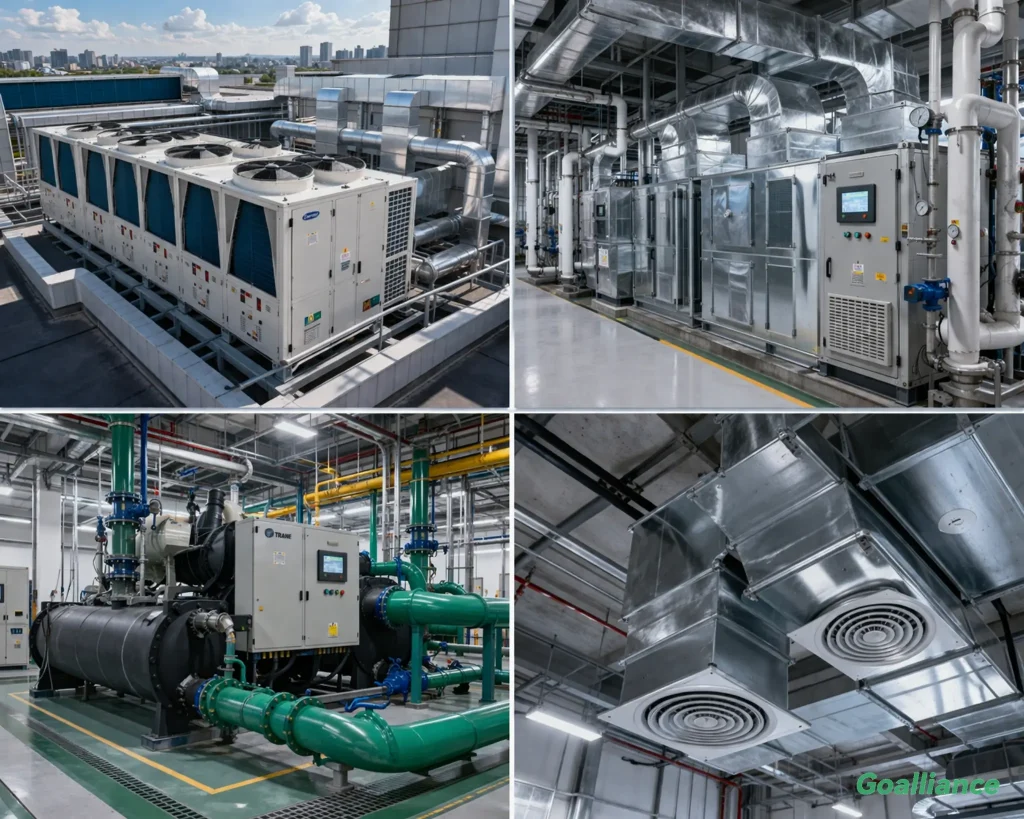

HVAC systems operating at variable load — which is most of the year — show the most dramatic VFD savings of any application category. Because fan and pump power scales with the cube of speed, reducing airflow to 80% of design capacity cuts fan power consumption by roughly 50%. At 60% flow, power drops to around 22% of full-load consumption. In practice, buildings that operate at partial load for most occupied hours consistently achieve 30–60% HVAC energy savings after VFD installation. We support chilled water pumps, condenser water pumps, AHU supply and return fans, and cooling tower fans — the full HVAC motor-driven system.

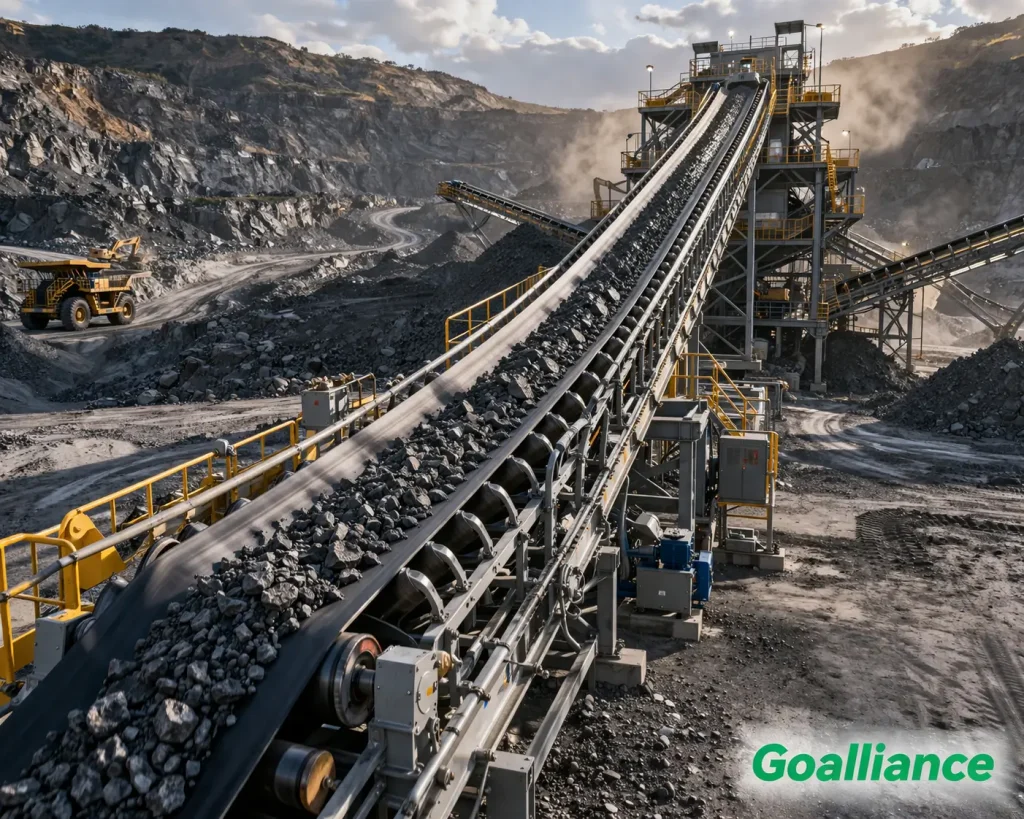

Safety is the primary design consideration in our mining VFD systems, not a secondary benefit. Controlled ramp-up for high-inertia loads like crushers and ball mills prevents mechanical shock that can cause structural failures. Regenerative braking on downhill conveyors provides controlled deceleration — eliminating runaway risk and recovering energy back to the supply. Precision torque control for mine hoists and winders maintains safe load handling at all speeds. Variable speed ventilation fans automatically respond to gas sensor readings, ensuring adequate air quality in underground workings. All systems can be configured for integration with mine safety monitoring platforms.

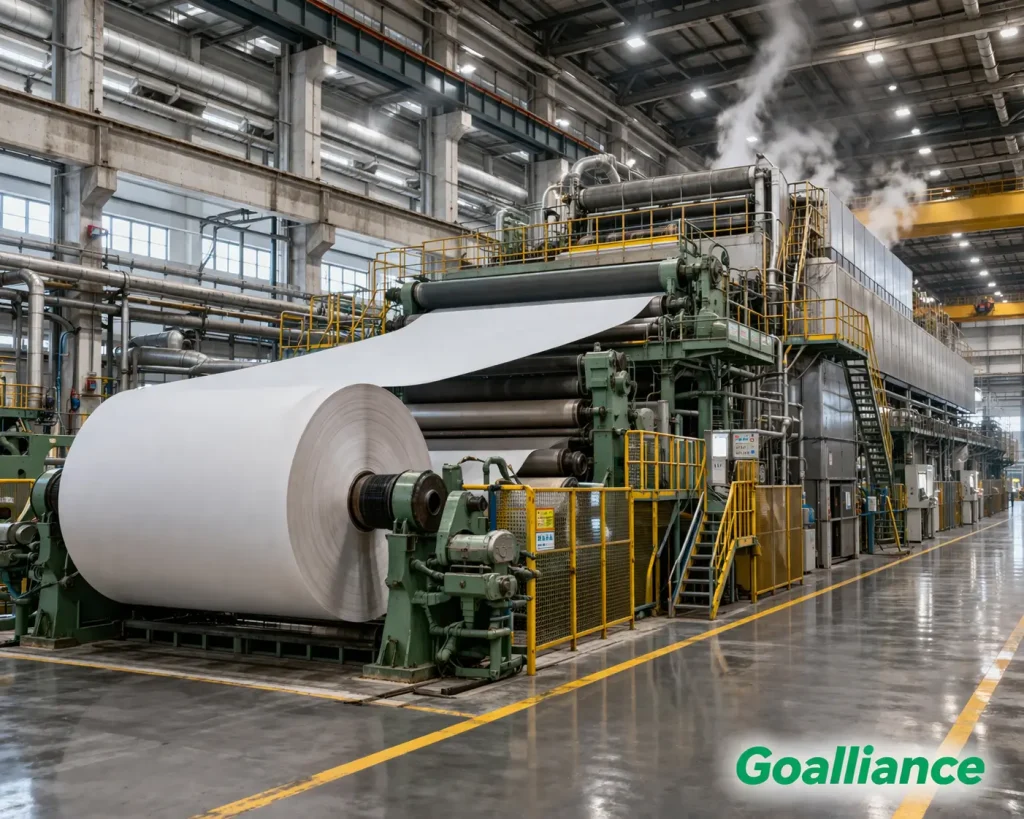

Paper machine drive synchronization is one of the most demanding applications in industrial automation — any speed deviation between sections causes web breaks, sheet defects, and production loss. Our paper machine VFD systems are engineered for ±0.01% speed regulation accuracy or better, using a master speed reference with draw control across headbox, wire section, press section, dryer section, and winding. We implement master-follower synchronization architectures via Profibus, Profinet, or Ethernet fieldbus to ensure all drive sections respond simultaneously to speed changes. Tension control and draw settings are fully configurable for different paper grades and basis weights.

Our standard process: 1. Engineering review — you share your application details, motor specs, environment, and integration requirements; we confirm the specification within 24–48 hours. 2. Solution proposal — full system design with brand selection, enclosure spec, communication protocol, and itemized quotation. 3. Panel fabrication — built and factory-tested before shipment. 4. On-site installation and commissioning — carried out by our engineers with full parameter setup, system integration testing, and handover documentation. 5. Operator training — your team trained on operation, parameter adjustment, and basic fault diagnosis. We coordinate scheduling around your planned maintenance windows to minimize production disruption.

Post-installation support is built into every project, not sold as an optional extra. We provide commissioning documentation and parameter records so any engineer can understand the system configuration. We offer remote diagnostics support — most VFD faults can be diagnosed and often resolved without a site visit when the system has remote monitoring capability. For on-site support needs, we provide local engineer response for fault rectification and spare parts supply. We also offer structured preventive maintenance contracts — scheduled inspections, cooling system service, capacitor health checks, and firmware updates — to extend equipment life and reduce unplanned downtime.

In most cases, retrofitting an existing fixed-speed motor installation with a VFD is straightforward. The motor itself typically does not need to be replaced — the VFD is installed between the existing power supply and the motor. For older motors, we conduct a compatibility check to confirm the insulation rating is suitable for VFD output (inverter-duty rating). The VFD panel replaces or supplements the existing motor starter panel. Most single-motor retrofit projects can be completed within a planned maintenance shift with no structural changes to the existing installation. We handle the full retrofit — panel design, installation, wiring, parameter setup, and test run — as a turnkey scope.

To prepare an accurate proposal, the most useful information is: Industry and application (e.g., water treatment pump station, HVAC AHU, mining conveyor); Motor details — power rating (kW or HP), supply voltage, number of motors to be controlled; Environment — indoor/outdoor, ambient temperature, dust or humidity exposure, any hazardous area classification; Control requirements — local/remote operation, existing PLC or SCADA system, communication protocol; Project timeline. You do not need to have all of this finalized — our engineers can help define the specification through a brief consultation. The fastest way to start is to contact us directly with even a basic description of your application.

Authorized Integrator for Global Leading Brands

We partner with top-tier automation manufacturers to deliver reliable, high-performance VFD control systems backed by global warranties and technical support.

  • huawei
  • BYD
  • CIMC
  • GREE
  • OPPO
  • LENS
  • GUANGZHOU METRO
  • WATER AUTHORITH OF SHENZHEN MUNICIPALITY

Ready to optimize your

energy efficiency?

Contact our senior engineers for a free,

industry-customized VFD solution and energy-saving ROI forecast.

get a quote whatsapp us
