Project Background

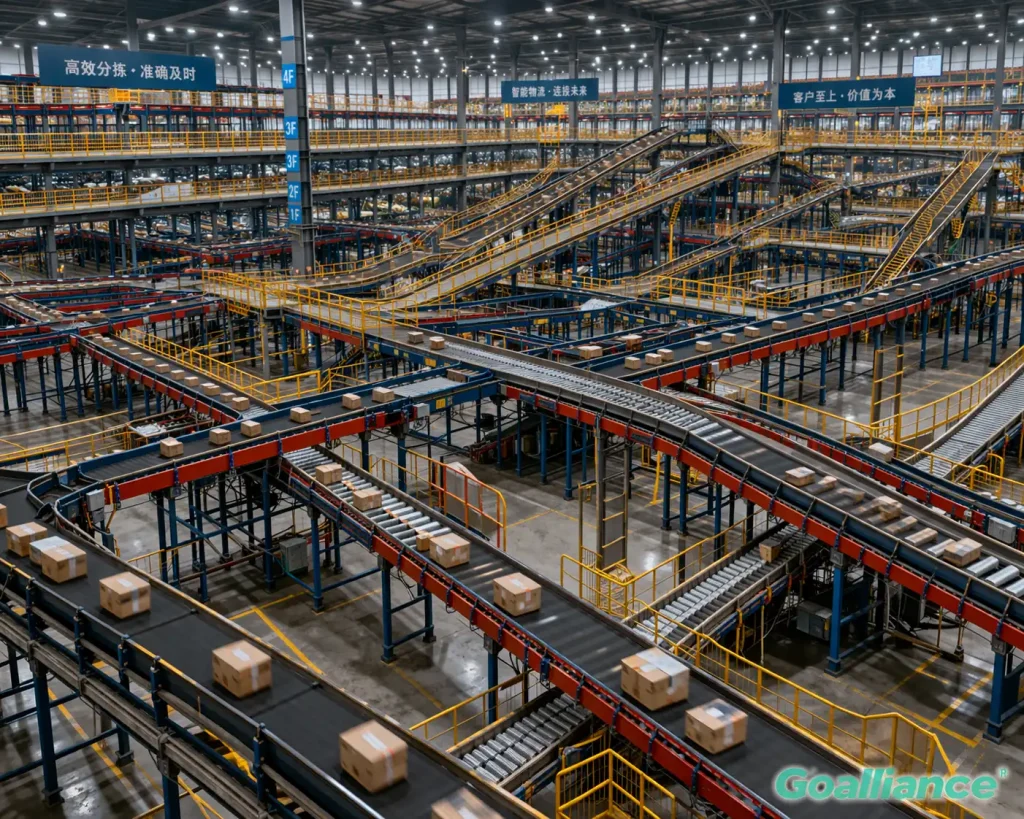

A major e-commerce fulfillment center in Zhejiang Province—with a total warehouse floor area of approximately 85,000 m²and a daily parcel throughput capacity of 800,000 pieces—was in the process of commissioning its second-phase automated sortation and conveyor infrastructure.The design called for a fully integrated conveyor drive system spanning inbound receiving lines,cross-belt sorters,spiral conveyors,telescopic belt loaders,and outbound dispatch lines across four warehouse floors.
The main engineering challenge was not simply driving individual conveyors in isolation—it was achieving precise multi-drive synchronization across interconnected conveyor sections where speed mismatch between adjacent belt segments causes package accumulation,jamming,product damage,and ultimately sortation system shutdowns during peak operating periods.The previous phase-one installation,which used conventional star-delta starters,had experienced repeated line stoppages during peak throughput periods due to exactly these issues.The client required a VFD-based solution that could guarantee smooth,synchronized speed control across the entire material flow chain,with full integration into the warehouse control system(WCS).
Solution
Goalliance engineered a comprehensive conveyor VFD control system covering 186 individual drive points across the facility,organized into twelve control panel zones positioned throughout the warehouse to minimize cable runs and enable zone-level fault isolation.
Drive Selection and Synchronization Architecture
The main sortation and trunk conveyor lines—where synchronization accuracy is most critical—were equipped with ABB ACS550 series drives in a master-follower speed reference architecture.A single master drive on each conveyor zone receives its speed reference from the WCS,while all follower drives in that zone track the master speed reference via high-speed digital communication,maintaining belt speed consistency within±0.5%across linked sections.This eliminates the speed differential between adjacent belts that causes package transfers to misalign,jam,or tip.
Spiral Conveyor Drives
The four spiral conveyors connecting warehouse floors presented a specific challenge:high static loads on start-up due to the weight of packages distributed across the full spiral length,combined with the need for controlled deceleration to prevent package pile-up at the spiral exit.ABB ACS550 drives with torque boost and flux vector control were selected for these applications,providing high starting torque at low speed to overcome static load inertia while enabling smooth,ramp-controlled deceleration.The drives’built-in anti-jam logic automatically reduces speed and reverses briefly if belt tension exceeds a set threshold—preventing mechanical damage to the spiral conveyor structure.
Telescopic Belt Loader Drives
Eighteen telescopic belt loaders at the outbound truck docks were fitted with INOVANCE MD290 series VFDs configured for position-speed coordinated control—managing both the extension/retraction speed of the telescopic mechanism and the belt conveying speed simultaneously.Variable speed control on the loading belt allows operators to adjust throughput rate to match different carton sizes and truck loading patterns,reducing package damage caused by excessive belt speed during manual loading operations.
Results
- Conveyor line stoppage incidents during peak throughput periods reduced by 92%compared to the phase-one star-delta installation
- Belt speed synchronization accuracy maintained at±0.5%across all linked conveyor sections
- Package damage rate attributable to conveyor system reduced from 0.31%to 0.04%of daily throughput
- Sortation system overall equipment effectiveness(OEE)improved from 81%to 96%
- Total conveyor system energy consumption reduced by 29%versus equivalent fixed-speed operation
- Mean time between conveyor system stoppages(MTBS)extended from 6.2 hours to over 47 hours
- Full investment payback period:19 months
